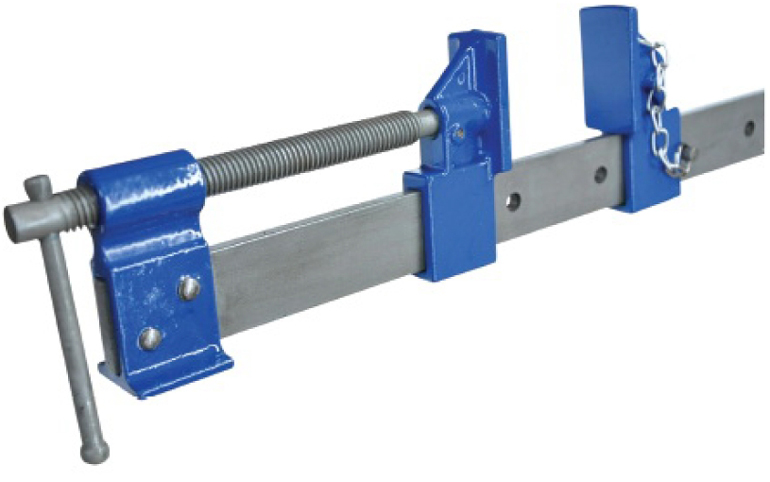

Steel Sash Clamp
BAR Section:
Final Machine Scale: Left No. A135, 1-1/4", 1/4" (32mm x 7mm).
The clamps are fitted with ANANT improved working slide, the principal feature of which is the incorporation of large thrust surfaces ensuring long wear & providing a reliable coupling between slide & screw. Each clamp is fitted with a bar stop to prevent accidental loss of tail slide.
Material:
Bar: Bright Steel with Square Edges
Head & Slides: S.G.Iron
Screw & Handle: High Quality Steel
Finish:
Enamelled ANANT Blue.
Spare Parts are readily available.
| Length of Bar(in Inches) | Length of Bar(in MM) | Width of Cut Iron(in Inches) | Width of Cut Iron(in MM) | Approx. Weight(in Pounds) | Approx. Weight(in Kg.) |
|---|---|---|---|---|---|
| 24 | 610 | 18 | 450 | 4½ | 2.15 |
| 30 | 762 | 24 | 610 | 5 | 2.3 |
| 36 | 950 | 30 | 762 | 5½ | 2.5 |
| 42 | 1068 | 36 | 915 | 6 | 2.75 |
| 48 | 1220 | 42 | 1068 | 6½ | 3 |
| Length of Bar(in Inches) | Length of Bar(in MM) | Approx. Weight(in Pounds) | Approx. Weight(in Kg.) |
|---|---|---|---|
| 24 | 610 | 3 | 1.5 |
| 30 | 762 | 3½ | 1.75 |
| 36 | 950 | 4 | 2 |
| 42 | 1068 | 4½ | 2.15 |
| 48 | 1220 | 5 | 2.3 |
