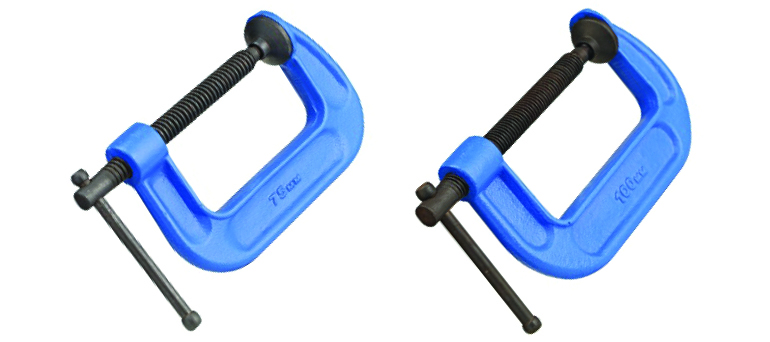

Designed for heavy duty these cramps are robust in construction and rigid in use. The screw has a unified form thread and all sizes are fitted with a Drop handle and swivel shoe which adapts itself to any angle of grip.
Frame: Drop Forged Steel, heat treated to close limits.
Screw: High Quality Steel, accurately machined.
Colour: ANANT Blue
Spare Parts are readily available.
To Take In (Inches) |
To Take In |
Depth of Throat (from Centre of screw) (Inches) |
Depth of Throat |
Dia. of Screw (Inches) |
Dia. of Screw |
Approx.Weight (Pounds) |
Approx.Weight |
---|---|---|---|---|---|---|---|
2 | 51 | 1¾ | 45 | 7/16 | 11 | 1¼ | .57 |
3 | 77 | 2 1/8 | 54 | ½ | 14 | 1¾ | .79 |
4 | 102 | 2¾ | 70 | 5/8 | 16 | 2½ | 1.13 |
6 | 153 | 3 5/8 | 92 | ¾ | 19 | 5 | 2.27 |
8 | 204 | 3 5/8 | 92 | ¾ | 19 | 7 | 3.18 |
10 | 254 | 4 | 102 | ¾ | 19 | 9½ | 4.31 |
12 | 305 | 4½ | 115 | 7/8 | 23 | 13 | 5.89 |
