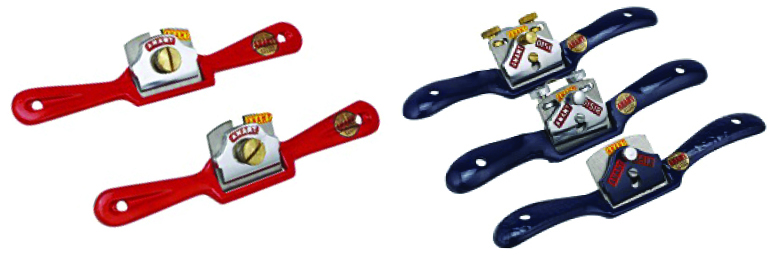

The Spokeshave is a handy shaping tool useful for small curves, furniture legs, etc; and provides a smooth plane-like finish. The wide range of spokeshaves caters for every requirement and is produced in two different types, (a) with flat face for use on convex curves, and (b) with round face for use on concave curves. The choice of raised and flat handles is a matter of personal preferences. All are fitted with double iron and the combined cop iron and lever cap being secured either by means of thumb screw or knurled screw according to type.
Body: Nos. A151, A151R, A51, A51R, A63, A64, High Grade Malleable Iron. Guaranteed against breakage.
Nos. 0151, 0151R, 051 & 051R High Grade Cast Iron.
Cut Iron: High Carbon Steel
Finish: Stove Enamelled Malleable Iron Red, Cast Iron ANANT Blue.
Packing: Individually Cartoned 051, 051R, 0151, 0151R, A51, A51R, A151, A151R - Four per master carton.
Packing: A63 - Six per master carton.
Raised Handle, Cast Iron Body.
Raised Handle, Malleable Iron Body.
Straight Handle, Malleable Iron Body.
Adjustable Cut Iron, Raised Handle, Cast Iron Body.
Adjustable Cut Iron, Raised Handle, Malleable Iron Body.
Straight Handle, Malleable Iron Body.
Plane No. | Length (Inches) |
Length (MM) |
Width of Cut Iron (Inches) | Width of Cut Iron (MM) | Unit Packing |
---|---|---|---|---|---|
051 | 10 | 250 | 2 1/8 | 54 | 72 |
051R | 10 | 250 | 2 1/8 | 54 | 72 |
0151 | 10 | 250 | 2 1/8 | 54 | 72 |
0151R | 10 | 250 | 2 1/8 | 54 | 72 |
A51 | 10 | 250 | 2 1/8 | 54 | 72 |
A51R | 10 | 250 | 2 1/8 | 54 | 72 |
A151 | 10 | 250 | 2 1/8 | 54 | 72 |
A151R | 10 | 250 | 2 1/8 | 54 | 72 |
A64 | 9 | 210 | 1 3/4 | 45 | 144 |
A63 | 9 | 210 | 1 3/4 | 45 | 144 |
Plane No. | Length (Inches) |
Length (MM) |
Width of Cut Iron (Inches) | Width of Cut Iron (MM) | Unit Packing |
---|---|---|---|---|---|
0051 | 10 | 250 | 2 1/8 | 54 | 72 |
0051R | 10 | 250 | 2 1/8 | 54 | 72 |
00151 | 10 | 250 | 2 1/8 | 54 | 72 |
00151R | 10 | 250 | 2 1/8 | 54 | 72 |
AA51 | 10 | 250 | 2 1/8 | 54 | 72 |
AA51R | 10 | 250 | 2 1/8 | 54 | 72 |
AA151 | 10 | 250 | 2 1/8 | 54 | 72 |
AA151R | 10 | 250 | 2 1/8 | 54 | 72 |
AA64 | 9 | 210 | 1 3/4 | 45 | 144 |
AA63 | 9 | 210 | 1 3/4 | 45 | 144 |
