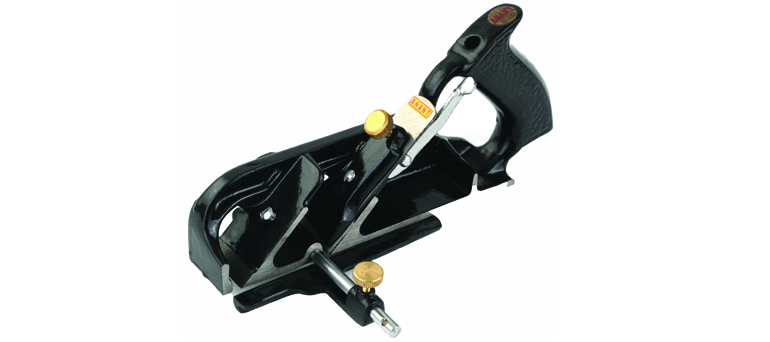

Similar in operation to the No. A78, this plane will also cut rabbets and fillisters up to 1½" (38 mm) in width With the cut iron in the forward position, the plane may be used for bull nose work and when in the rear position, adjustment to the cut iron is provided by a lever.
Fitted with a hardened steel spur for cross grain work and an adjustment gauge which can be removed from the plane if desired. The single arm adjustable fence supplied may be used on either side of the plane. Base and sides are ground and polished.
Plane No. | Length (Inches) |
Length |
Width of Cut Iron (Inches) |
Width of Cut Iron (MM) | Unit Packing |
---|---|---|---|---|---|
A078 | 8½ | 216 | 1½ | 38 | 12 |
Plane No. | Length (Inches) |
Length |
Width of Cut Iron (Inches) |
Width of Cut Iron (MM) | Unit Packing |
---|---|---|---|---|---|
AA078 | 8½ | 216 | 1½ | 38 | 12 |
Body & Fence: High grade cast iron.
Cut Iron: High Carbon Steel.
Finish: Stove Enamelled ANANT Black. Base and sides of body grounded and polished.
Packing: Individually packed.
